Date:	Wed, 18 Dec 2002 00:27:33 PST8
From:	"Info2SYNass.NET" <Info@SYNass.NET >
Reply-To:	scoug-help@scoug.com
To:	scoug-help@scoug.com
Subject:	SCOUG-Help: Ethernet Print Server & SLPR print problem

Content-Id: <1040221636-1-Info@SYNass.NET>
Content-Transfer-Encoding: 8bit

Hi
The fact that an Ethernet Print Server works on WINdoze does not
mean
that it has to work with OS/2 !!!

Here I got running an NETgear PS113 with OS/2 ...
... but it was somewhat tricky !!

You need to find out the exact nomenclatura used by the unit !

In my case it looks like following:

The unit has a device name given by the manufacturer and
it's on a label on its bottom. The ports connecting to printers
are P1, P2 and P3.

The unit's IP address and the device name are used with the
settings in TCPcfg(2) under the tab "Printing".

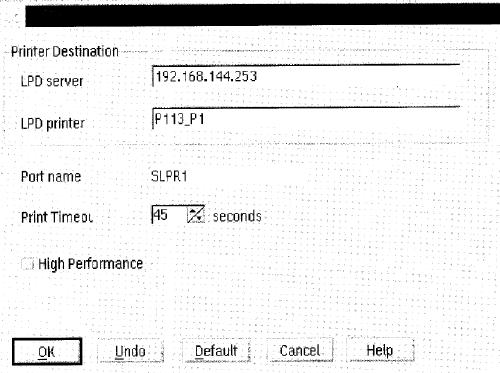

The properties of the respective printer in my case looks like
following:

- slpr.jpg

To find out hese hidden parameters and settings you need
to access the unit with Telnet and investigate and search
these values: I was very lucky to have a helpful friend ;-)

Cheers, svobi

s-geo@usa.net on 18.12.2002 08.17.57
Please respond to scoug-help@scoug.com
To: scoug-help@scoug.com
cc:
Subject: SCOUG-Help: SLPR print problem

Do an iptrace on a very short print. Read the trace (thru
ipformt) and see if the driver is telling
the printer it is using PCL.

Shortly after the handshaking (ack bits on in two or three to and
fro messages) there should be a
large sized message to the printer that sets up the printer.
Mine, both PCL and Postscript, send
things as the file name of the document, margins, resolution,
etc. including the language agreed on
(for my printers PCL or Postscript).

Sheridan

Tom Brown wrote:
>
> I have a Hawking PN7127P TCP/IP Ethernet print server. I am
trying to
> use it with the SLPR driver (8-27-02 9:45a 73771 0 slpr.exe)
from the
> eComstation site and an IBM 4019E Laser Printer. I know that
the
> Hawking Print Server is working because I can print from my
main machine
> under Windoze 2000 Pro and from another machine under Win XP
Pro. When I
> try to print from eCS, I get multiple pages of garbage where
only one
> page, such as AUTOEXEC.BAT is requested.
>
> I am running the 4019 in HP emulation mode (set via a switch
combination
> at power on, retained across power off/on) and using the
LASERJET.IBM
> 4019Laserprinter E printer driver and the latest SLPR port
driver.
>
> Any suggestions as to where to look or what to check? Thanks!

************************************************************
*** >>> Say NO to HTML in Mail and News <<< ***
*** ++++++++++++++++++++++++++++++++++++++++++++++++ ***
*** >>> AGAINST TERROR +++ AGAINST WAR <<< ***
************************************************************

Unknown header: name="slpr.jpg" :
Unknown header: content-id : <1040221636-2-Info@SYNass.NET>
File attachment: slpr.jpg
